HiFocus 80iHiFocus 80

Hifocus 80i

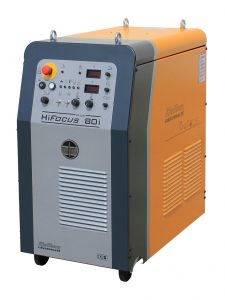

The HiFocus 80i is the smallest high precision plasma cutting device worldwide. It covers a cutting range from 0.5 mm to 25 mm. It provides the highest quality cutting of thin and medium sized sheets with an unbeatable price/performance ratio. A wide range of special torches and various applications in conjunction with robotic systems make it ideal for the automotive industry.

Brochure HiFocus 80i

Technical data

Power source HiFocus 80i
Voltage* 3x 400 V, 50 Hz
Cutting current (at 100 % d.c.) 10 - 80 A
Cutting area 0.5 - 25 mm
Hole punch up to 15 mm
Dimensions (L x W x H) 1000 x 510 x 1020 mm
Weight 161kg
Plasma torches PerCut 80 / 90

*Other voltages and frequencies available upon request.
